_CMPISelectCondFT Struct Reference

This structure is a table of pointers providing access to SelectCond support sevices. More...

#include <cmpift.h>

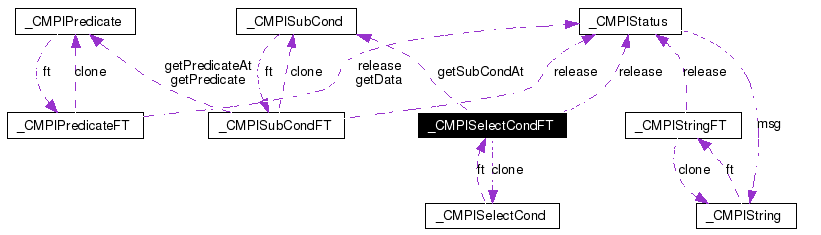

Collaboration diagram for _CMPISelectCondFT:

[legend]List of all members.

Public Attributes
int	ftVersion
	Function table version.
CMPIStatus(*	release )(CMPISelectCond *sc)
	The SelectCond object will not be used any further and may be freed by CMPI run time system.
CMPISelectCond *(*	clone )(const CMPISelectCond *sc, CMPIStatus *rc)
	Create an independent copy of this SelectCond object.
CMPICount(*	getCountAndType )(const CMPISelectCond *sc, int *type, CMPIStatus *rc)
	Return the number of sub conditions that are partof this SelectCond.
CMPISubCond *(*	getSubCondAt )(const CMPISelectCond *sc, unsigned int index, CMPIStatus *rc)
	Return a SubCond element based on its index.

---

Detailed Description

This structure is a table of pointers providing access to SelectCond support sevices.

Definition at line 1372 of file cmpift.h.

---

Member Data Documentation

CMPISelectCond*(* _CMPISelectCondFT::clone)(const CMPISelectCond *sc, CMPIStatus *rc)

Create an independent copy of this SelectCond object. The resulting object must be released explicitly. Parameters: sc  SelectCond this pointer. rc  Output: Service return status (suppressed when NULL). Returns: Pointer to copied SelectExp object.

int _CMPISelectCondFT::ftVersion

Function table version. Definition at line 1376 of file cmpift.h.

CMPICount(* _CMPISelectCondFT::getCountAndType)(const CMPISelectCond *sc, int *type, CMPIStatus *rc)

Return the number of sub conditions that are partof this SelectCond. Optionally, the SelectCond type (COD or DOC) will be returned. Parameters: sc  SelectCond this pointer. type  Output: SelectCond type (suppressed when NULL). rc  Output: Service return status (suppressed when NULL). Returns: Number of SubCond elements.

CMPISubCond*(* _CMPISelectCondFT::getSubCondAt)(const CMPISelectCond *sc, unsigned int index, CMPIStatus *rc)

Return a SubCond element based on its index. Parameters: sc  SelectCond this pointer. index  Position in the internal SubCoind array. rc  Output: Service return status (suppressed when NULL). Returns: The indexed SubCond element.

CMPIStatus(* _CMPISelectCondFT::release)(CMPISelectCond *sc)

The SelectCond object will not be used any further and may be freed by CMPI run time system. Parameters: sc  SelectCond this pointer. Returns: Service return status.

---

The documentation for this struct was generated from the following file:

• cmpift.h

---
